Slope Stabilization Design in Austin

Rigorous testing. Clear reporting.

Austin sits at an average elevation of 489 feet, straddling the Balcones Escarpment where the Blackland Prairie meets the Edwards Plateau. This geologic transition creates highly variable ground conditions for slope stabilization design. The steep ravines along Barton Creek and the Colorado River bluff lines demand site-specific analysis of clay shales and limestone interbeds. Before committing to a stabilization method, the team typically runs [suelos no saturados](https://sao-paulo.sondajespt.com/suelos-no-saturados) testing to capture the negative pore pressure behavior that governs strength in Austin's unsaturated profiles.

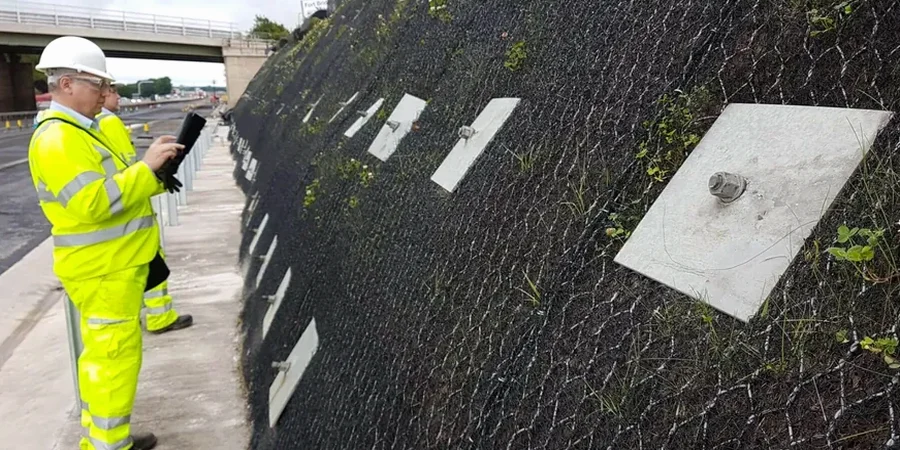

Illustrative image of Slope stabilization design in Austin

A single wetting cycle in Austin's expansive clays can drop a slope's factor of safety from 1.5 to below 1.2.

Our service areas

Process overview

ASCE 7-22 requires slope stabilization design to consider both static and pseudostatic loading, a critical point in Austin where seismic hazard maps indicate peak ground accelerations up to 0.10g. The city's seasonal shrink-swell cycles in expansive clay formations can reduce factor of safety from 1.5 to below 1.2 within a single wetting event. A typical analysis workflow includes:

Limit-equilibrium modeling using Spencer and Morgenstern-Price methods
Probabilistic assessment via Monte Carlo simulation of shear strength parameters
Groundwater monitoring across at least two rainy seasons

For deep-seated failure surfaces along the Colorado River terraces, combining slope analysis with [pilotes](https://sao-paulo.sondajespt.com/pilotes) helps transfer loads past the active zone into competent limestone.

Technical reference — Austin

Local context

Comparing the steep slopes of Mount Bonnell against the gentler grades of Circle C Ranch reveals two distinct risk profiles. In the west, thin-bedded limestone over clay shale can fail as planar slides after prolonged rain. In the south, deep clay profiles with perched water tables produce rotational failures. Both scenarios require slope stabilization design that accounts for Austin's flash flood intensity: a 100-year storm delivers over 4.5 inches in 24 hours, rapidly raising pore pressures. Ignoring these local conditions leads to sliding that damages utilities and undermines foundations.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.com

Relevant standards

ASCE 7-22 (Minimum Design Loads), IBC 2021 (International Building Code), FHWA-NHI-05-089 (Soil Nail Walls Reference Manual), ASTM D1586-18 (Standard Test Method for SPT), ASTM D2487-17 (Unified Soil Classification System)

Technical data

Parameter	Typical value
Target Factor of Safety (Static)	≥ 1.5
Target Factor of Safety (Pseudostatic)	≥ 1.1
Shear Strength - Peak Friction Angle	28° - 34° (clay shale)
Cohesion (Undrained)	500 - 2000 psf
Groundwater Fluctuation	5 - 15 ft seasonal
Surcharge Loading (Traffic/Building)	250 - 500 psf
Seismic Coefficient (k_h)	0.05 - 0.10g per ASCE 7-22

FAQ

What is the typical cost range for slope stabilization design in Austin?

For a residential or small commercial project, the geotechnical analysis and design report typically ranges from US$1,440 to US$6,620. The final cost depends on slope height, site access, number of borings, and required laboratory testing (triaxial, direct shear).

How deep do borings need to be for slope stabilization design?

Borings should extend at least 1.5 times the slope height below the toe, or until competent bedrock (limestone) is encountered. In Austin's Colorado River terraces, this often means 30 to 60 feet deep. SPT and rock coring are performed at 5-foot intervals.

What is the difference between a soil nail wall and a ground anchor wall?

Soil nails are passive, grouted bars installed at a slight downward angle, relying on the full length for tensile resistance. Ground anchors are prestressed elements that transfer load to a stable zone behind the failure surface. Soil nails work well for cuts up to 40 feet in stiff clay; anchors are preferred for higher loads or where movement must be strictly limited.
