Landfill Geotechnics in Austin: Reliable Solutions for Waste Containment

Rigorous testing. Clear reporting.

LEARN MORE

Austin sits on the Balcones Fault Zone, where the geology shifts from limestone uplands to expansive clay plains in less than ten miles. That diversity matters when you design a landfill — the liner system must seal tight in karst terrain just as it does in the black clay of the Blackland Prairie. We have completed containment studies for municipal and industrial waste sites across Travis County, always starting with a thorough site investigation. Before specifying clay liners or geomembranes, we run permeability tests in the field to confirm the in-situ hydraulic conductivity meets EPA Subtitle D requirements. Landfill geotechnics in Austin demands local knowledge of the Edwards Aquifer recharge zone, where even a small leak can affect regional groundwater. Our approach combines drilling, sampling, and lab testing to give owners the data they need for permit approval.

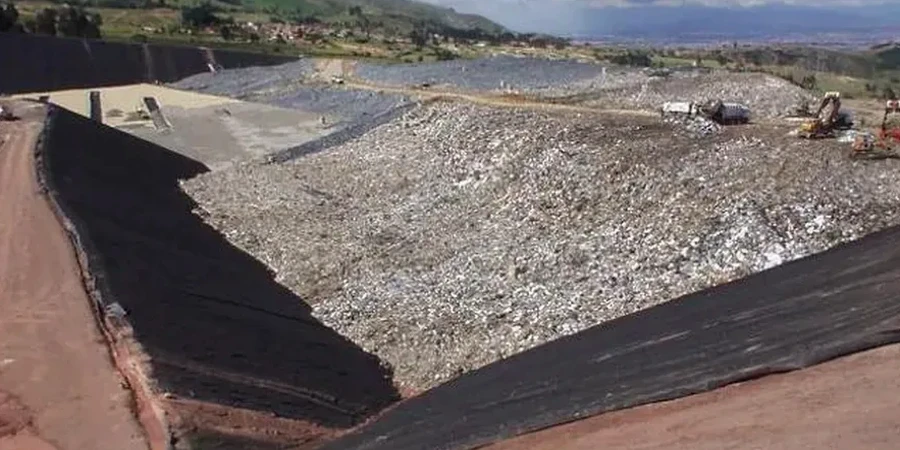

Illustrative image of Landfill geotechnics in Austin
In Austin's karst terrain, a standard clay liner may need a geosynthetic backup — we verify with three independent permeability tests.

Our service areas

Process overview

The typical Austin profile includes a layer of clayey silts over weathered limestone, with groundwater often perched on rock horizons at depths of 10 to 30 feet. For landfill geotechnics, we measure Atterberg limits and compaction characteristics on every soil horizon because the plasticity index controls liner performance. We also evaluate the subgrade bearing capacity using plate load tests and correlate results with CBR values. When the project calls for slope stability analysis on the waste mass or the final cover, we model both static and seismic conditions using the Spencer and Bishop methods.
  • Hydraulic conductivity tests on compacted clay liners (ASTM D5084)
  • Direct shear and triaxial compression on foundation soils
  • Gas permeability assessment for methane migration control
Landfill geotechnics in Austin relies on these data to design leachate collection systems and lateral expansion phases. We cross-check every result against the IBC seismic design category, which in the Austin area ranges from C to D depending on the site class — a factor that directly affects liner anchorage and slope reinforcement. Complementing the analysis with resistivity surveys helps us map soil stratification without drilling extra boreholes, saving time during the pre-design phase.
Technical reference — Austin

Local context

Compare two Austin sectors: the clay-rich soils of Dove Springs versus the limestone ridges near Lake Travis. In Dove Springs, the high-shrink swell clay beneath a landfill can crack a compacted clay liner if moisture changes seasonally — we have measured volumetric strains up to 8% in wet years. Near Lake Travis, the shallow rock forces designers to either excavate deep or build a composite liner over a prepared subgrade. Both scenarios introduce differential movement risks that a standard geotechnical report might miss. Landfill geotechnics in Austin must address these distinct failure modes, which is why we run wet-dry cycling tests on liner samples and model long-term settlement under waste loading. Ignoring the local geology leads to costly repairs; we have seen leachate seeps appear within two years at sites where the site classification was underestimated.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.com

Relevant standards


ASTM D5084 (Hydraulic conductivity of soils), ASTM D698 (Standard Proctor compaction), 40 CFR Part 258 (EPA Subtitle D criteria for MSW landfills), ASCE 7-16 (Seismic design for waste containment)

Technical data

ParameterTypical value
Hydraulic conductivity (clay liner)≤ 1×10⁻⁷ cm/s per 40 CFR 258
Compaction (Standard Proctor)95% of max dry density (ASTM D698)
Plasticity index (liner soil)PI ≥ 15% (ASTM D4318)
Shear strength (foundation)c' = 0–5 kPa, φ' = 28°–34° (CD triaxial)
Seismic PGA (Austin area)0.10–0.15 g (ASCE 7-16)

Visual overview

FAQ


How much does a landfill geotechnical study in Austin cost?

For a typical municipal solid waste landfill expansion in the Austin area, the cost ranges between US$2.280 and US$7.500. The final price depends on the site size, number of borings, laboratory tests required, and whether seismic analysis is needed. We provide a detailed scope and firm quote after reviewing the project drawings.

What ASTM standards apply to landfill liner design in Texas?

The key standards include ASTM D5084 for hydraulic conductivity, ASTM D698 for compaction control, ASTM D4318 for Atterberg limits, and ASTM D3080 for direct shear testing. Texas also follows EPA Subtitle D criteria (40 CFR 258) which specifies liner permeability limits and leachate collection requirements.

How does Austin's karst geology affect landfill liner performance?

Karst limestone with solution cavities can create preferential flow paths for leachate if the liner is not properly keyed into impervious strata. We address this by performing a resistivity survey to map voids before liner design, and by specifying a composite liner (clay plus geomembrane) in areas where the rock surface is irregular. The Edwards Aquifer recharge zone adds extra regulatory scrutiny from the TCEQ.

What is the difference between a compacted clay liner and a geosynthetic clay liner?

A compacted clay liner (CCL) is a 2- to 5-foot thick layer of soil compacted to achieve a hydraulic conductivity ≤ 1×10⁻⁷ cm/s. A geosynthetic clay liner (GCL) is a factory-manufactured sheet of bentonite between geotextiles, with a thickness of about 0.25 inches. GCLs are thinner and easier to install but require a protective cover and are more sensitive to puncture. For Austin landfills, we often recommend a CCL overlain by a GCL for redundancy.

How long does a landfill geotechnical investigation take in Austin?

A standard investigation with 6 to 10 borings, lab testing, and a report typically takes 4 to 6 weeks. If seismic analysis or slope stability modeling is required, add another 2 weeks. We coordinate with the TCEQ permitting timeline so the geotechnical report arrives before the application deadline.
